Offset of a 3D-Polyline

Offset of a 3D-Polyline

Ribbon: Topoplan – Relief > Offset of a 3D-Polyline
Menu: Topoplan – Relief > Offset of a 3D-Polyline
Toolbar: Relief > Offset of a 3D-Polyline
Command line: 3DPOLYOFFSET

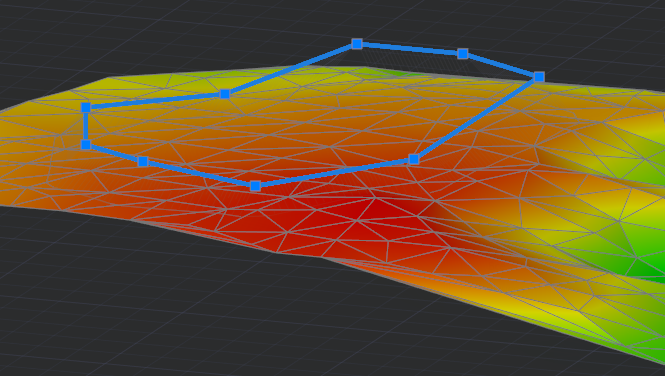

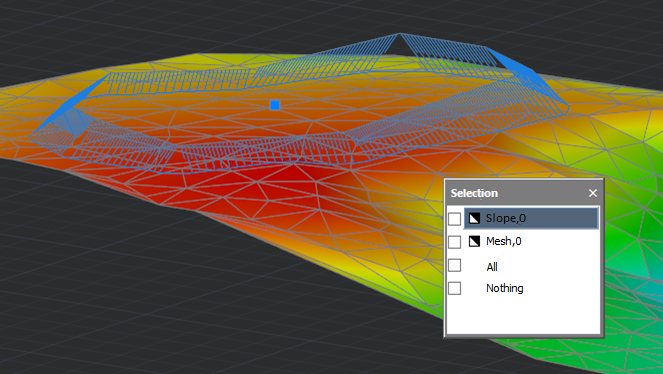

The command draws a 3D polyline similar to the selected one at a specified distance from the original one, with an offset in the XY plane of the current UCS.

Command prompts:

Select mode [Delete/Keep]: Set the distance by entering a value from the keyboard or by pointing on the screen.
Select 3dPolyline or: Select a 3D polyline for which you want to draw a similar one.

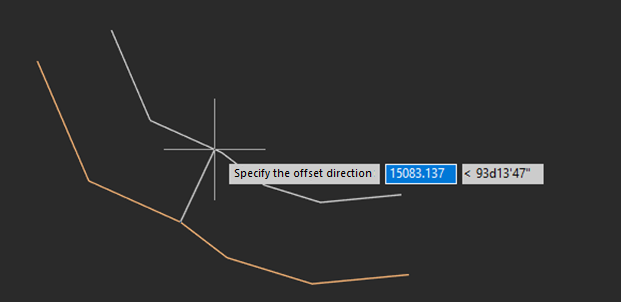

Specify the offset direction: Specify the offset direction and approximate offset distance.
Offset distance: Enter exact offset distance
