Command line: STYLEEDITCMDCLASSIC

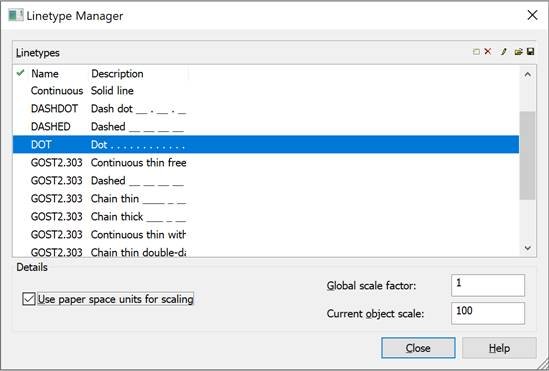

The command opens the classic version of the Linetypes dialog, which is used for compatibility with previous versions of the program. The dialog displays information about all linetypes available in the document. The dialog allows you to load, delete and rename linetypes. The Line Type Editor is used for editing.

Parameters:

Linetypes	Displays a list of line types loaded in the current document.
Status	Displays and sets the current line type
Name	Displays and edits the name of the selected line type.
Description	Displays and edits the appearance and text description of the selected line type.

Buttons

	Add linetype	Creates a new linetype based on the one selected from the list.
	Delete linetype	Deletes the selected linetype from the current document.
	Edit linetype	Button to call the internal Line Type Editor.
	Load linetype	Imports linetypes into the current document.
	Save linetype	Saves the selected linetypes to a file with the *.LIN extension.

Details

To perform operations with linetypes, the Linetypes dialog also has a context menu:

To set the linetype as current:

1. In the dialog box, select the desired linetype by left-clicking.

2. Click in the leftmost field opposite the selected line type. Moving the check box to this field indicates that the line type is set as current.

To create a new linetype based on an existing one:

1. In the Linetypes dialog box, select the appropriate linetype by clicking.

2. Click the New button. A new row with the default name Linetype1 will appear in the list of linetypes.

3. Click Linetype1, specify the name for the new linetype.

4. In the Description column, enter information about the linetype.

5. Click the Edit button.

6. Make the necessary changes in the Linetype Editor that opens.

7. Click OK to close the Linetype Editor.

8. Click Close to exit the Linetypes dialog box.
