Create Geopoints by Points and Texts

Ribbon: Topoplan – Geopoints > Creating Geopoints by Points and Texts
Menu: Topoplan – Geopoints > Creating Geopoints by Points and Texts
Toolbar: Geopoints > Creating Geopoints by Points and Texts
Command line: NG_CREATE_POINTS_BY_TXT

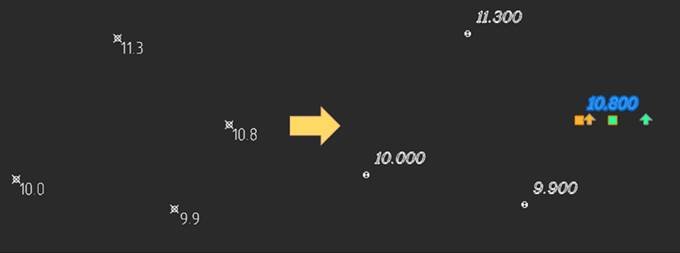

The command creates geopoints by points (circles, blocks) and text objects (Texts, MTexts) found at a specified distance. The maximum distance for text search is specified in the drawing.

Command prompts:

Select objects or [?]: Select objects to be converted to geopoints.
Text with elevation or [Text/MText/Both]: Specify the type of text objects from which information for geopoint labels should be taken: single-line text, multi-line text, or both at the same time.
Max Distance. Specity first point: With a mouse click, specify on the drawing the first point of the maximum possible distance from the point to its label.
Within this distance from a point (circle or block), the command will search for a text object – a label
Specify a distance with a small margin: a little more than the maximum distance from a point to its label (text object) in the drawing.
Specify second point: Specify the second distance point.
Remove original objects? or [Yes/No]: Specify whether to delete the original objects or not.
Input a new COGO group name or [AllPoints]: Enter a name for a new group of geopoints or accept the proposed name.

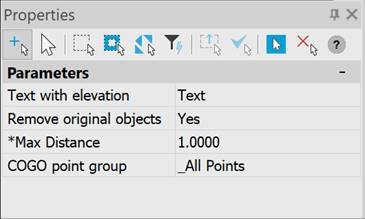

The parameters of the Creating Geopoints by Points and Texts command are configured in the Properties bar.

  • Text with elevation;
  • Remove original objects;
  • Max Distance;
  • COGO point group;
Text with elevation Selection of single-line and multi-line text to get a label, or both.
Remove original objects Specifies whether to delete the original objects or not.
Max Distance Distances from point to text.
COGO point group Creating a group for new geopoints (if the group is not specified, put it in the _All Points group)
