Multiline Text

Multiline Text

Ribbon: Home, Annotate – Text > Multiline Text
Menu: Draw – Text > Multiline Text…
Toolbar: Draw –
Toolbar: Text –
Command line: MT, MTEXT, MTEXTCREATE, T

Multiline text consists of any number of text lines or paragraphs that fit within a width you specify. It can extend vertically to an indefinite length. Can be split into columns. Multiline text is a single object.
There are more editing options for multiline text than there are for single-line text. For example, you can apply underlining, fonts, color, and text height changes to individual characters, words or phrases within a paragraph.
Draw a rectangular frame by double clicking a point to place multiline text there. Specify the top left corner first and then the bottom right corner.

In the Text format dialog box that opens, set the parameters of the multiline text:

Options:

	Drop-down list to select the text style.
	Drop-down list to select the font file that defines the style of the characters.
	Input field for the characters height.

Text formatting modes

	Bold	Turns bold formatting on and off for new or selected text. This option is available only for characters using TrueType fonts.
	Italic	Turns italic formatting on and off for new or selected text. This option is available only for characters using TrueType fonts.
	Striked	Turns strikethrough on or off for new or selected text.
	Underlined	Turns underlining on or off for new or selected text.
	Overlined	Turns overlining on or off for new or selected text.
	Superscript	Makes text superscript and vice versa.
	Subscript	Makes text subscript and vice versa.

Columns

Columns

Create and edit multiple columns. Opens the list of parameters:

No columns	Combines all columns.
Dynamic columns	Dynamic columns modes: Auto height Manual height
Static columns	Mode of static columns. Set from 2 to 6 columns. All static columns have the same height and alignment in the edges.
Insert column	Insert new column manually Ctrl+T

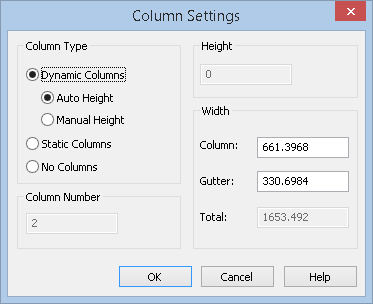

Column parameters	Opens the Column Settings dialog box. Display and set the following parameters: Column type – select the type of columns to be created. Column Number – set the number of columns. The parameter is available only for the Static Columns option. Height – displays and sets the height of the column. The parameter is available for editing Static Columns and Manual Height setting for dynamic columns. Width – Displays and sets column widths and column spacing. Parameter Total – displays the value of the total width of the text object.

Text alignment

Text alignment

Select the alignment mode for the insertion point and direction

Text position modes

	Align left	Sets the alignment of the text to the left.
	Align center	Sets the alignment of the text to the center.
	Align right	Sets the alignment of the text to the right.
	Justified	Sets the text mode to justified.
	Distributed	Sets the text mode to distributed.

Change the case of selected text

	Uppercase	Changes the selected text to uppercase (replace the lowercase characters with uppercase).
	Lowercase	Changes the selected text to lowercase (replace the uppercase characters with lowercase).
	Insert symbol	Inserts symbol from the list. Symbols… and Other… open tables with other special symbols.

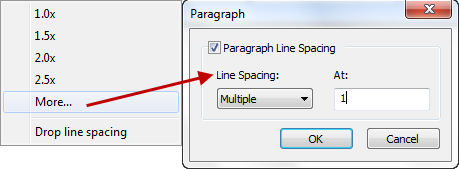

	Line Spacing	Sets line spacing between separate lines in the current or selected paragraph. 1,0x, 1,5x, 2,0x, 2,5x – Set the factor of line spacing on the text height. Drop line spacing– drop line spacing to default of selected or current paragraph. More… – calls Paragraph dialog box. Select other variants of line spacing Exactly – defines the space with an arbitrary unit value which user specified. Text height does not affect the line spacing. Multiple – sets the factor for text height. When text height is not consistent in one line, the line space will be determined by the largest text height value in that line. At least – considers specified value and text height. If text height is smaller than specified value then the line spacing takes user specified value. Otherwise line spacing takes text height.
	Numbering	Creates lists with numbers, letters or markers. Off – numbering in turned off. Lettered – alphabeting numeration with selected parameters: Lowercase Uppercase Numbered – create numbered list. Bulleted – create bulleted list
	Insert field	Opens Field dialog box to insert field to the text.

Additional options

Determines the forward or backward slant of the text. A positive angle slants text to the right. A negative angle slants text to the left.

Widens or narrows the selected characters. The 1.0 setting represents the normal width of the letter in this font. Set to more than 1.0 to increase the width, and set to less than 1.0 to decrease the width. Info: NanoCAD is an easy-to-use, cheap, and yet professional, CAD program for Windows, that delivers a great user experience by providing enhanced performance, full capability, a classic interface and native.dwg format support. nanoCAD has been built to deliver design and project documentation for all industrial purposes. nanoCAD includes a full suite of basic and advanced CAD tools for 2D/3D drawing and creating industry-standard DWG-compatible CAD files. Our program supports innovative, collaborative and customizable features to boost your efficiency, and includes a number of API’s, allowing anything from routine task automation to complex CAD app development. You may download nanoCad for free, using the links below, and purchase later, if you like it.
